A Skin Packaging, Blister, and vacuum Forming Machine

Home

photo vac 50

photo vac 100

Photo Vac 200

Photo Vac 400

A. Machine Dimensions:

  • Length 58"
  • Width 36"
  • Height 45"
  • Weight 200 lbs. Approx.

B. Mechanical Specifications:

  • Maximum sheet size 22" x 22"
  • Maximum sheet thickness 3/16"
  • Maximum mold size 20" x 20"
  • Maximum mold depth 6"

C. Electrical Specifications:

  • Voltage: 240 Volts
  • Phase: Single

D. Product Overview:

Designed specifically to meet the needs of small laboratories, design studios, offices and classrooms, this portable, tabletop, vacuum former is highly efficient and produces professional quality parts in a matter of minutes. No need to send your prototype work to an outside source and then wait for days, even weeks, for samples.

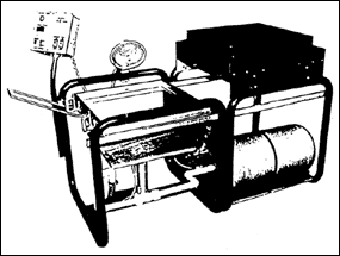

The PROTO-VAC 50 features a 3000 watt oven which is capable of heating a 22" x 22" x 3/16" plastic sheet to a thermoformable temperature in minutes; a self-contained vacuum system -- complete with a 20 gal, accumulator tank. All you need to provide is compressed air.

The control panel consists of a percentage timer (for oven heat control), a countdown timer (for heat cycle control), an on/off systems switch, a fan switch and an indicator light to signal the operator when the plastic sheet is ready to be removed from the oven. All these controls are located within easy reach and view of the operator.

The entire electrical system of the Model 50 is protected by a manually operated main service disconnect switch, for use in cases of emergency, to safeguard the machine from electrical damage. All other key electrical elements of the vacuum former are fused for extra protection.

The Model 50 vacuum former is a truly affordable and efficient machine that will prove to be worth more than the investment in it.





For more information please contact us at:
Tamco Manufacturing Co.
P.O. Box 1794
Elkhart, IN 46515
(574)294-1909
